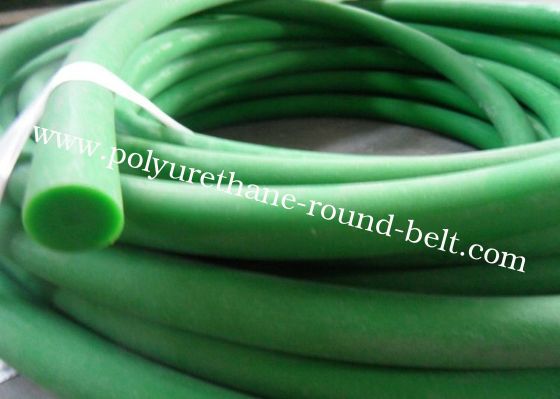

Polyurethane Rough Round Belt Hardness 88A Transmission Belting 400m / Roll
| Place of Origin | China |
|---|---|
| Brand Name | Jiuna |
| Certification | ROHS |
| Model Number | Diameter 2mm~20mm |
| Minimum Order Quantity | 10rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Color | Green Color |
|---|---|---|---|
| Hardness | 85A | Length | 400m/roll 200m/roll 100m/roll 50m/rll 30m/roll |
| Highlight | Transmission Belting Polyurethane Rough Round Belt,88A Polyurethane Rough Round Belt,400m/Roll Polyurethane Rough Round Belt |
||
You can tick the products you need and communicate with us in the message board.
| Items NO. | Least radius of gyration | Least radius of gyration | Stretching rate | Maximum tensile rate | Maximum tensile rate | Hardness | Length of rolled | |
|---|---|---|---|---|---|---|---|---|
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | m | |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 | |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 | |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 | |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 | |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 | |
| 5mm | 1.57 | 40 | 1.5-3% | 2 | 4.3 | 90 | 100 | |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7 | 90 | 100 | |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9 | 90 | 100 | |
| 8mm | 2.56 | 65 | 1.5-3% | 5 | 11 | 90 | 100 | |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15 | 90 | 50 | |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17 | 90 | 50 | |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27 | 90 | 30 | |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39 | 90 | 30 | |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56 | 90 | 30 | |
| 20mm | 6.3 | 160 | 1.5-3% | 31.3 | 69 | 90 | 30 |
Product Description
Transmission belting and Polyurethane round belt poly cord
Transmissione belting introduction:
Polycord round belt is an elastomer, it can alleviate the impact of vibration, assure smooth movement and decrease noise during
operation. When the large load leads to the belt slip, it will play the role of protecting the machineary. The production and installation precision of polycord round belt is not as strict as the meshing drive, so we can increase the
belt length to meet the working condition of large cennter distance.
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
|
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
|
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
